Create, read and delete UI#

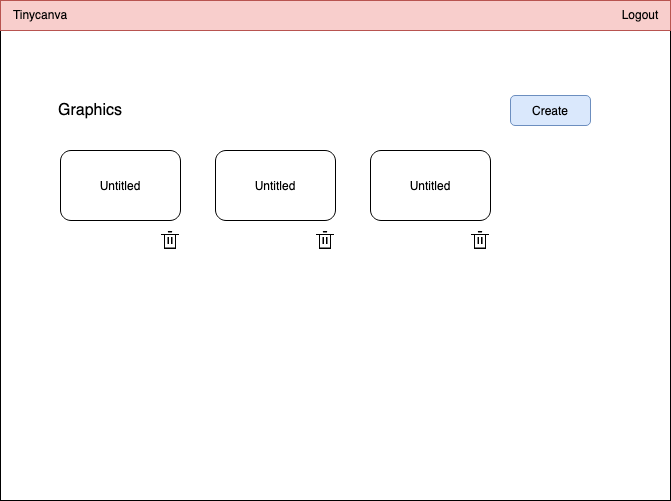

With the functionality in place, we will now build the user interface for creating, reading, and deleting graphics. Here's the wireframe we started with:

Title and create button#

The page title "Graphics" and the Create button can be clubbed into a component called header:

(defn header []

  (let [creating-graphic? @(rf/subscribe [:app.domain.firebase/creating-graphic?])]

    [:div {:class "flex justify-between my-4 mx-auto"}

     [:div.text-xl "Graphics"]

     [:> Button {:text "Create new" :intent (.-PRIMARY Intent) :loading creating-graphic?

                 :on-click #(rf/dispatch [:app.domain.firebase/create-graphic])}]]))

The header component renders a :div for the title and a Blueprint Button.

The call-to-action button dispatches the :a.d.f/create-graphic action, similar to what we did using the REPL. The component also subscribes to :a.d.f/creating-graphic? and uses the subscription value as :loading prop to the Button component. We have not written this subscription yet.

For this code to work, we need to require the necessary libraries:

(ns app.pages.graphics

  (:require [app.components.nav :as nav]

            [app.components.auth :as auth]

            [re-frame.core :as rf]

            [reagent.core :as r]

            ["@blueprintjs/core" :refer (Button Intent Spinner Card)]))

Subscription#

We can pull the ::creating-graphic? flag from app-db using a subscription in a.d.firebase namespace. We defined this flag when we wrote the handler for ::create-graphic event:

(rf/reg-sub

 ::creating-graphic?

 #(-> % ::creating-graphic?))

If you find the usage of the key repetitive, you can use the reframe-utils library. It provides a wrapper to Reframe API and allows for concise event handlers, effects, and subscriptions. With reframe-utils, the above subscription can be written as:

(rfu/reg-basic-sub ::creating-graphics?)

;; which is equivalent to

(rfu/reg-basic-sub

	::creating-graphics? ; sub id

	::creating-graphics? ; db key

	)

;; which is equivalent to

(rf/reg-sub

 ::creating-graphic?

 #(-> % ::creating-graphic?))

Render header#

We can add this component to page component so it renders on /graphics route:

(defn page []

  [auth/private

   [nav/top]

   [:div {:class "w-100 md:w-2/3 m-auto p-4"}

    [header]

	]])

If everything worked well, you'll see the header component on the /graphics route. Clicking the Create New button will create a new graphic (and print to console):

Graphics list#

The job of this component is to fetch all the graphics from Firebase and display them as a grid. The graphics can be fetched by dispatching the :a.d.f/fetch-graphics event, but this is a side-effect!

The data should be fetched automatically when the component mounts. In modern React, this is achieved using the useEffect hook. In traditional React, the component-did-mount method is used to define the effects that need to be triggered when a component mounts.

To use the useEffect hook, we need to reactify Reagent components, ie convert them to React components. This means losing access to ratoms. Since Reframe's app-db is just a Reagent atom under the hood, hooks don't play well with Reframe either.

It's a common approach in the Clojure frontend community to let the router handle mount interactions. This requires the developer to use a more bare-bones routing engine so the tweaks can be made.

But since we are using React Router, we'll use Reagent's create-class method to create a class-based component. We'll then define a component-did-mount method, and dispatch the ::fetch-graphics event in that method:

Class-based components#

Unlike a functional Reagent component, a class-based Reagent component is defined by passing a map to reagent.core/create-class method. This map accepts various key value pairs like:

• :component-did-mount (fn []) - equivalent to React's componentWillMount

• :display-name - name of the component for debugging and logging purposes

• :reagent-render - equivalent to React's render

A full list of accepted key-value pairs can be found in the official docs.

Graphics subscription#

We want our graphics-list component to show a loading indicator when graphics are being fetched, then render each graphic. Let's create the subscription that pulls the required data from app-db:

(rf/reg-sub

 ::graphics

 #(select-keys % [::fetching-graphics? ::graphics]))

This will provide us with a map:

{:app.domain.firebase/fetching-graphics? false

 :app.domain.firebase/graphics {:id1 {}

                                :id2 {}}

Namespaced destructuring of maps#
